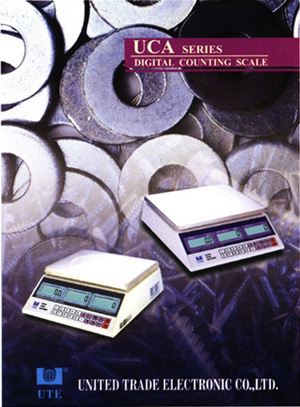

UCA SERIES |

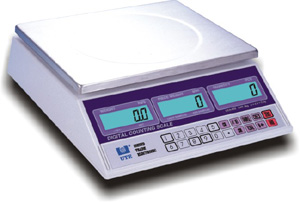

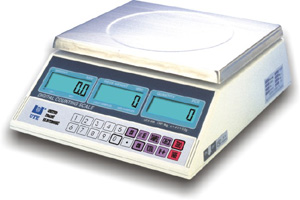

DIGITAL COUNTING SCALE |
|
FEATURES: |
1. |
Load Cell with high accuracy |
| |
of 1/6000-1/30000 |
2. |
Large LCD display |
3. |
Rechargeable battery/AC source |
4. |
Has the functions of auto zero |
|
tracking, Tare, Quantity set alarm, |
| |
memory |
5. |
Back-lighting display |
6. |
RS232 interface,optional |
7. |
Connect with μ-16s printer |
| |
 |
|
|
| |
|
|
|
| |
|
DIMENSION: 294WX360DX130H(mm)
|
DIMENSION: 294WX360DX130H(mm) |
| |
|
|
|
| |
SPECIFICATIONS (UCA-A SERIES) |
| |
Model |
UCA-A-102 |
UCA-A-105 |
UCA-A-003 |
UCA-A-006 |
UCA-A-012 |
UCA-A-015 |
UCA-A-030 |
CAP. |
1.2kg |
1.5kg |
3kg |
6kg |
12kg |
15kg |
30kg |
Division |
0.2g |
0.2g |
0.5g |
1g |
2g |
2g |
5g |
Pan Size |
285mm×240mm |
Power Source |
AC:110/220V DC: 6V |
|
| |
|
|
|
| |
|
|
|
| |
SPECIFICATIONS (UCA-B SERIES) |
| |
Model |
UCA-B-102 |
UCA-B-105 |
UCA-B-003 |
UCA-B-006 |
UCA-B-012 |
UCA-B-015 |
UCA-B-030 |
CAP. |
1.2kg |
1.5kg |
3kg |
6kg |
12kg |
15kg |
30kg |
Division |
0.1g |
0.1g |
0.2g |
0.5g |
1g |
1g |
2g |
Pan Size |
285mm×240mm |
Power Source |
AC:110/220V DC: 6V |
|
| |
|
|
|
| |
|
|
|
| |
SPECIFICATIONS (UCA-C SERIES) |
| |
Model |
UCA-C-003 |
UCA-C-006 |
UCA-C-015 |
UCA-C-030 |
CAP. |
3kg |
6kg |
15kg |
30kg |
Division |
0.1g |
0.2g |
0.5g |
1g |
Pan Size |
285mm×240mm |
|
Power Source |
AC:110/220V DC: 6V |
|
| |
|
|
|
|
