ELECTRONIC SCALE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LOAD CELLS |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
 |
|
|
|
| |
|
| |

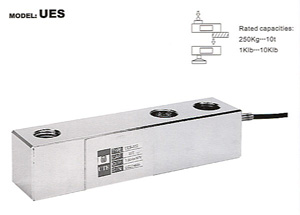

UTE load cells are designed to meet the most stringent accuracy requirements.
UES load cells are available in the capacities 0.25 t to 10 t.
They offer total alloy steel construction and improved potting,making them suitable
for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all kind of weighing
applications.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:0.25t,0.5t,1t,2t,2.5t,5t,10t |
* |
Plat form scale |
|
* |
High accuracy |
* |
Silo and tank weighing |
|
* |
Total alloy steel construction |
|
|
|
* |
Low profile |
|
|
|
* |
Easy cable replacement |
|
|
|
* |
Complete range of loading hardware available |
|
|
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UES Specifications |
Maximum Capacity |
t |
0.25/0.5/1/2.5/5/10 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
3 ± 0.0025 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.03 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Complete hermetic sealing;cable entry sealed by metal header |
Protection class |
|
IP 66 |
|
| |

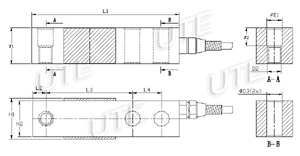

Dimensions(in mm,1mm=0.03937inches) |
|
Type |
L1 |
L2 |
L3 |
L4 |
H1 |
H2 |
W1 |
W2 |
D1 |
D2 |
D3 |
UES-250KG |
129.5 |
12 |
76.2 |
25.4 |
36.1 |
31.7 |
31.7 |
0 |
13.5 |
M12 |
13.5 |
UES-0.5T/1T/2T |
129.5 |
12 |
76.2 |
25.4 |
36.1 |
31.7 |
31.7 |
16 |
13.5 |
M12 |
13.5 |
UES-2.5T/5T |
172 |
19.05 |
95.25 |
38.1 |
42.5 |
38.1 |
38.1 |
19 |
19.8 |
M18 |
19.8 |
UES-10T |
255.5 |
25.4 |
123.9 |
50.8 |
55.2 |
50.8 |
50.8 |
25 |
26 |
M24 |
26 |
|
| |
Wiring |
* |
The Load cell is provided with a shielded,4 Conductor cable |
* |
Cable lenght:6m |
* |
Cable diameter:6mm |
|
| |
|
