| UTE

ELECTRONIC SCALE

LOAD CELLS





UT-A,B | UT-R/W


UT-A SERIES
CRANE SCALE

FEATURES:
1.
Initial Range:Up to 100% of load cell Output.
2.
Tare Range: 100% of the scale capacity.
3.
Zero setting:Operated through push button
when the scale is stable.
4.
Auto Zero Tracking:Range and Time delay
are adjustable.
5.
kg/lb conversion.
6.
1 inch bright & large LED display.
7.
Over-load indication.
8.
Low battery indication.
9.
Power:DC6V/10AH
10.
Built-in Rechargeable Battery:Life100~120
hours. auto Cut-off battery charger Provided.


Zoomin
Zoomin

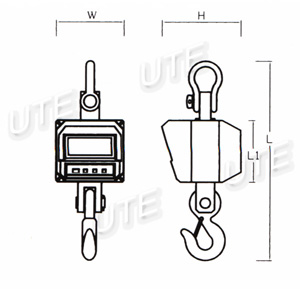

UT-A

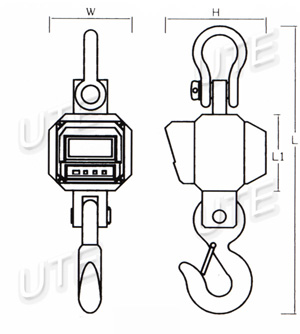

UT_B



SPECIFICATIONS (UT-A/B)


MODEL

CAPACITY

DIVISION

UNIT(mm)

N-W
L L1 W H

UT-A-006

600Kg

 0.2Kg

630

200

220

255

19Kg

UT-A-010

1000Kg

 0.5Kg

630

 200 220 255

19Kg
UT-A-015
 1500Kg 0.5Kg 630 200 220 255 19Kg
UT-A-025
 2000Kg 1Kg 630 200 220 255 19Kg
UT-A-030
 3000Kg 1Kg 630 200 220 255 19Kg
UT-B-050
 5000Kg 2Kg 900 200 220 255 54Kg
UT-B-075
 7500Kg 2Kg 900 268 248 325 54Kg
UT-B-100
 10000Kg 5Kg 900 268 248 325 54Kg
UT-B-150
 15000Kg 5Kg 900 268 248 325 54Kg
