| UTE

ELECTRONIC SCALE

LOAD CELLS







     UTE load supports are designed to prevent unwanted forces
  from affecting load cell performance.

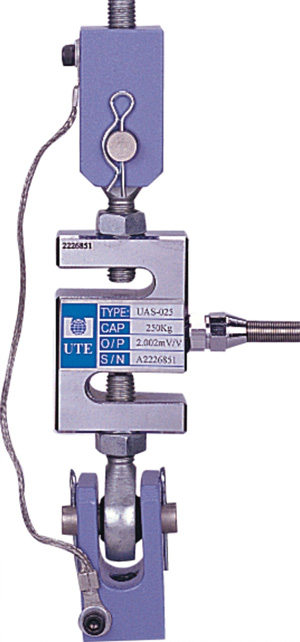

  The type UBS-M is a self aligning tension assembly. Especially
  designed for the UAS and UBS load cells.
  Standard version: steel,paint plated.
Important Features:
*
Capacity range: 100Kg to 5000Kg
*
Very easy to install
*
Especially designed for hopper scales,
tank weighing systems and hybrid scale conversion.

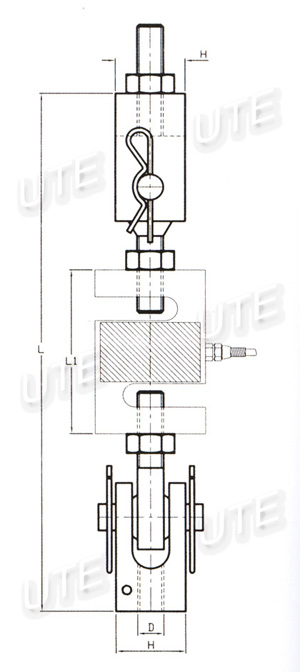

Type
L
L1
H
D
200Kg~750Kg
240
76.2
32
M12
1T~5T
360
107.9
28.2
M18

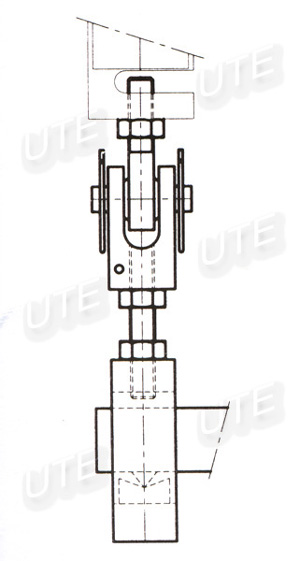

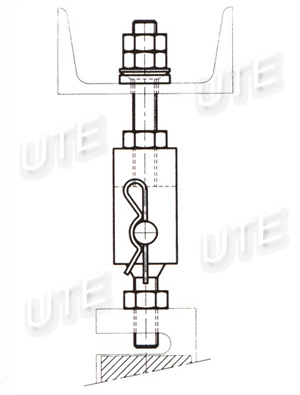

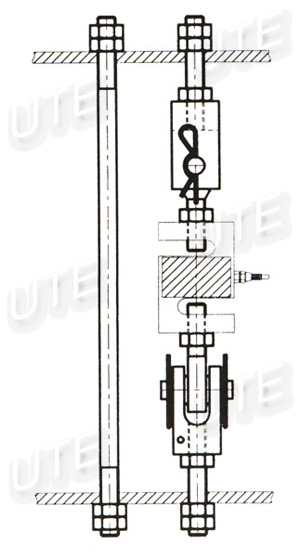

Examples
Examples
Examples
