| UTE

ELECTRONIC SCALE

LOAD CELLS

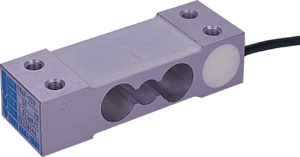

     UTE load cells are designed to meet the most stringent accuracy requirements.
 UBAF AND UBAT  load cells are available in the capacities 3 Kg to 250 Kg.
 They offer total alloy aluminum construction and improved potting,making them suitable
  for use in the toughest industrial environments.
  It allows very low profile platform design and offers advantages in all  kind of  weighing
  applications.
Important Features:
Application areas:
*
High accuracy
*
Price scales
*
Total alloy aluminum construction
*
Counting scales
*
Low profile
*
Weighing scales
*
Easy cable replacement
*
Complete range of loading hardware available
*
Factory mutual approved
UBAT Specifications

Maximum Capacity

Kg UBAF 3/6/12/20/35 UBAT 15/20/40/50/60/120/250
Material


Aluminum

Recommended Excitation
V

10

Maximum Excitation

V

15

Rated Output(=RO)

mV/V 2 ± 0.05

Zero Balance

%RO

± 0.030

Creep Error (20minutes)

%RO

± 0.025

Repeatability

%RO

± 0.02

Input Resistance

Ω

394 ± 3

Output Resistance

Ω

350 ± 3

Compensated Temperature Range

-10 ~ 40

Operating Temperature Range

-20 ~ 60

Temperature Effect On Output
%Load/10℃ 0.02
Temperature Effect On Zero
%RO/10℃

0.02

Safe Load limit

%of rat.cap.

150

Ultimate load

%of rat.cap.

200

Sealing
  Potted
Protection class
  IP 66
Maximum Platform Size
mm 250 X 250

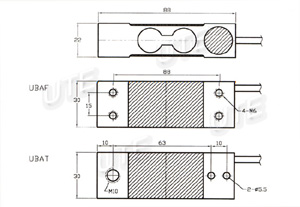

Dimensions(in mm,1mm=0.03937inches)

Wiring
*
The Load cell is provided with a shielded wire round cable
*
Cable lenght:45cm
*
Cable diameter:4mm
*
The shield is connected to the load cell body
