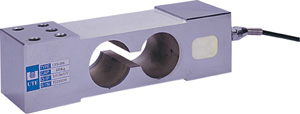

UTE load cells are designed to meet the most stringent accuracy requirements.
UFS load cells are available in the capacities 0.6 t to 4 t.
They offer total alloy steel construction and improved potting,making them suitable
for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all kind of weighing
applications.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:0.6t,1t,2t,4t |
* |
Plat form scale |
|
* |
High accuracy |
|
|
|
* |
Total alloy steel construction |
|
|
|
* |
Low profile |
|
|
|
* |
Easy cable replacement |
|
|
|
* |
Complete range of loading hardware available |
|
|
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UFS Specifications |
Maximum Capacity |
t |
0.6/1/2/4 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.025 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.03 |
Temperature Effect On Zero |
%RO/10℃ |
0.03 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Potted |
Protection class |
|
IP 66 |
Maximum Platform Size |
mm |
1200 X 1200 |
|
| |

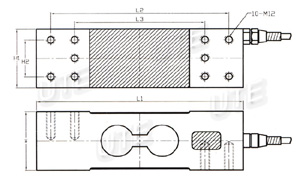

Dimensions(in mm,1mm=0.03937inches) |
|
Type |
L1 |
L2 |
L3 |
H1 |
H2 |
W |
UFS-600Kg/1T |
250 |
218.2 |
161.2 |
70 |
44.5 |
70 |
UFS-2T/4T |
320 |
282 |
199.4 |
76 |
50.8 |
76 |
|
| |
Wiring |
* |
The Load cell is provided with a shielded,4 conductor cable |
* |
Cable lenght:4m |
* |
Cable diameter:6mm |
* |
The shield is connected to the load cell body |
|
| |
