| UTE

ELECTRONIC SCALE

LOAD CELLS

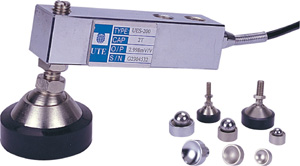

    The type UES-F  is a height adjustable, self aligning rubber foot;
  combining excellent load introduction with low profile design.
  Especially designed for UES series load cells.
  Material : Steel; alternatively stainless steel.
Important Features:
*
Capacity range:250Kg to 5000 Kg
*
Low profile
*
Height adjustable by rotation
*
Very easy to install
*
Especially designed for platform scales

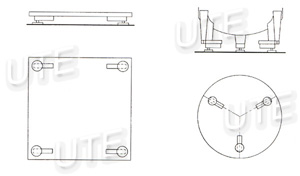

Examples
Type
L
L1
D
D1
UES-250kG/2T
92
50
60
M12
UES-2.5T/5T
105
50
80
M18

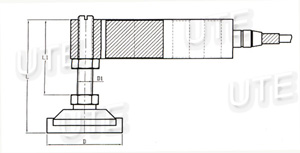

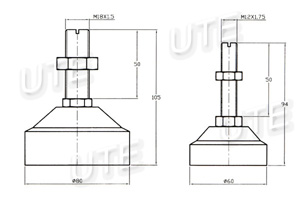

Dimensions(in mm,1mm=0.03937inches)
