| UTE

ELECTRONIC SCALE

LOAD CELLS







     UTE load cells supports are designed to prevent unwanted forces from
 affected load cell performance.

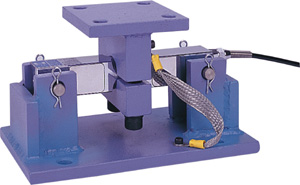

 The ULSB-M  is a base plate assembly, used to support the ULSB load
 cells.The assembly Includes base plate and load cell mounting bolts.
 It can  also be provided with and overload stop, to protect the load cells.
 Material: steel,paint plated;alternatively stainless.
 Special designed as per customers' requirement.
Important Features:
Options:
*
Very easy to install
*
Lateral load cell locking system for ULSB
*
Overload protection system

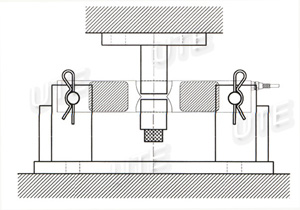

Examples

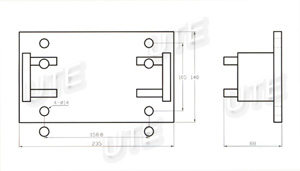

Dimensions(in mm,1mm=0.03937inches)

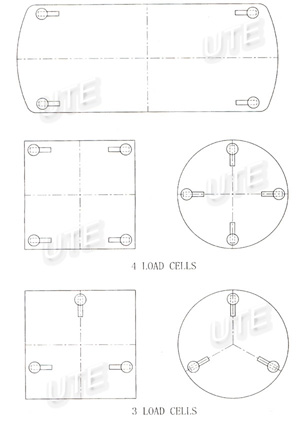

Examples
