ELECTRONIC SCALE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LOAD CELLS |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
 |
|
|
|
| |
|
| |
UTE load cells are designed to meet the most stringent accuracy requirements.

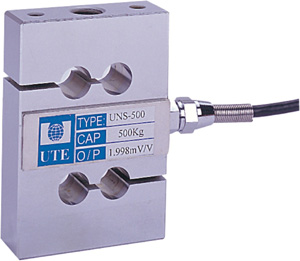

UNS universal load cells are available in the capacities 100Kg to 500Kg.
They offer total alloy steel construction and improved potting,making them suitable
for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all kinds of weighing
applications.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:100Kg,200Kg,300Kg,500Kg |
* |
Crane scale |
|
* |
High accuracy |
* |
Belt scale |
|
* |
Total aluminum construction |
* |
Tensile testing |
|
* |
Low profile |
* |
Silo and tank weighing |
|
* |
Easy cable replacement |
* |
Industrial scales |
|
* |
Complete range of loading hardware available |
* |
Mechanical coversion kits |
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
UNS Specifications |
Maximum Capacity |
Kg |
100/200/300/500 |
Material |
|
Alloy steel |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.04 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
390 ± 3 |
Output Resistance |
Ω |
350 ± 5 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Potted |
Protection class |
|
IP 66 |
|
| |

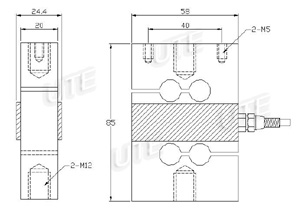

Dimensions(in mm,1mm=0.03937inches) |
|
| |
Wiring |
* |
The Load cell is provided with a shielded wire round cable |
* |
Cable lenght:4m |
* |
Cable diameter:6mm |
|
| |
|
