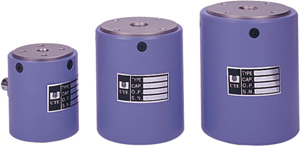

UTE load cells are designed to meet the most stringent accuracy requirements.
URS universal load cells are available in the capacities 2 Kg to 200 Kg.
They are designed for determing static and dynamic tensile and compressive forces.
They are preferably used in weighing applications and thus calibrated as load cells
in kilograms.
They can be used for example in material testing machines and have a wide field of
application in experimental technology.
Important Features:
Application areas:
*
Capacities:2Kg,5Kg,10Kg,20Kg,50Kg,100Kg,200Kg
*
Material testing machines
*
High accuracy
*
Pull and push applications
*
Integral overload protection up to a nominal load of 200KG
*
Parallel connection of several load cells is Possible
URS Specifications
Maximum Capacity
Kg
2/5/10/20/50/100/200
Material
Alloy steel
Recommended Excitation
V
10
Maximum Excitation
V
15
Rated Output(=RO)
mV/V
1± 0.01
Zero Balance
%RO
± 0.05
Creep Error (20minutes)
%RO
± 0.05
Repeatability
%RO
± 0.05
Input Resistance
Ω
390 ± 3
Output Resistance
Ω
350 ± 5
Compensated Temperature Range
℃
-10 ~ 40
Operating Temperature Range
℃
-10 ~ 50
Temperature Effect On Output
%Load/10℃
0.026
Temperature Effect On Zero
%RO/10℃
0.026
Safe Load limit
%of rat.cap.
150
Ultimate load
%of rat.cap.
200
Protection class
IP 66

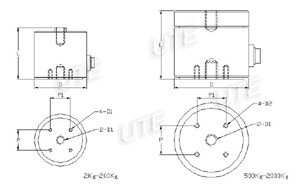

Dimensions(in mm,1mm=0.03937inches)
Type
L
D
D1
D2
P
P1
URS-2Kg/5Kg
45
53
M6
M4
27
27
URS-10Kg/20Kg/50Kg
61
65
M10
M6
32
32
URS-100Kg/200Kg
65
72
M10
M8
35
35
Wiring
*
The Load cell is provided with A 6-Pin connector 4-wire cable connected by
