ELECTRONIC SCALE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LOAD CELLS |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
 |
|
|
|
| |
|
| |
UTE load cells are designed to meet the most stringent accuracy requirements.
URA load cells are available in the capacities 100 Kg to 750 Kg.
They offer total alloy aluminum construction and improved potting,making them suitable
for use in the toughest industrial environments.
It allows very low profile platform design and offers advantages in all kind of weighing
applications.
|
Important Features: |
|
Application areas: |
|
* |
Capacities:100Kg,150Kg,200Kg,300Kg,500Kg,750Kg |
* |
Bench scale |
|
* |
High accuracy |
* |
Plat form scale |
|
* |
Total alloy aluminum construction |
|
|
|
* |
Low profile |
|
|
|
* |
Easy cable replacement |
|
|
|
* |
Complete range of loading hardware available |
|
|
|
* |
Factory mutual approved |
|
|
|
|
|
|
|
|
|
|
URA Specifications |
Maximum Capacity |
Kg |
100/150/200/300/500/750 |
Material |
|
Aluminum |
Recommended Excitation |
V |
10 |
Maximum Excitation |
V |
15 |
Rated Output(=RO) |
mV/V |
2 ± 0.05 |
Zero Balance |
%RO |
± 0.030 |
Creep Error (20minutes) |
%RO |
± 0.025 |
Repeatability |
%RO |
± 0.02 |
Input Resistance |
Ω |
414 ± 3 |
Output Resistance |
Ω |
350 ± 3 |
Compensated Temperature Range |
℃ |
-10 ~ 40 |
Operating Temperature Range |
℃ |
-20 ~ 60 |
Temperature Effect On Output |
%Load/10℃ |
0.02 |
Temperature Effect On Zero |
%RO/10℃ |
0.02 |
Safe Load limit |
%of rat.cap. |
150 |
Ultimate load |
%of rat.cap. |
200 |
Sealing |
|
Potted |
Protection class |
|
IP 66 |
Maximum Platform Size |
mm |
600 X 600 |
|
| |

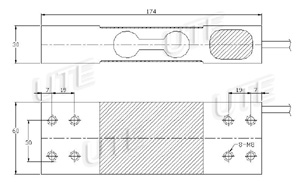

Dimensions(in mm,1mm=0.03937inches) |
|
| |
Wiring |
* |
The Load cell is provided with a shielded wire round cable |
* |
Cable lenght:2m |
* |
Cable diameter:6mm |
* |
The shield is connected to the load cell body |
|
| |
|
